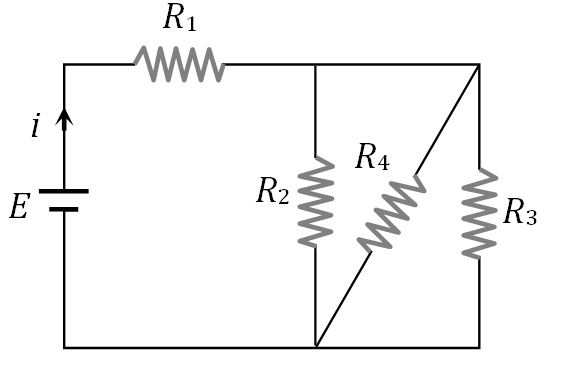

Question: In the circuit given $E = 6.0 V$, $R_1 = 100$ ohms, $R_2 = R_3 = 50$ ohms, $R_4 = 75$ ohms. The equivalent resistance of the circuit, in ohms, is

Question Image

1) 11.875
2) 26.31
3) 118.75
4) None of these
Solution: Explanation: No Explanation
Grouping of Resistors Combination of Resistors
