Current Electricity

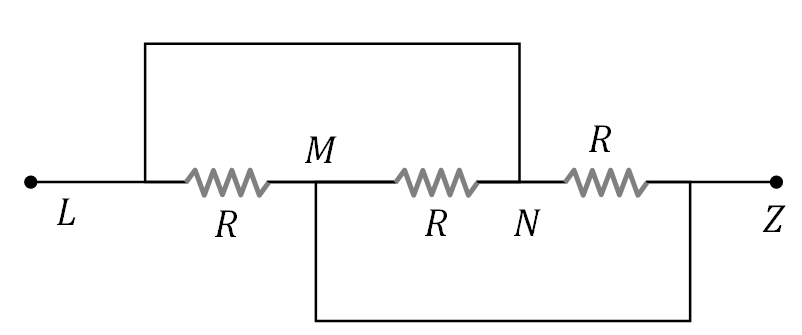

Question: Three equal resistances each of value R are joined as shown in the figure. The equivalent resistance between M and N is

Question Image

1) R

2) 2R

3) $\frac{R}{2}$

4) $\frac{R}{3}$

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
