Current Electricity

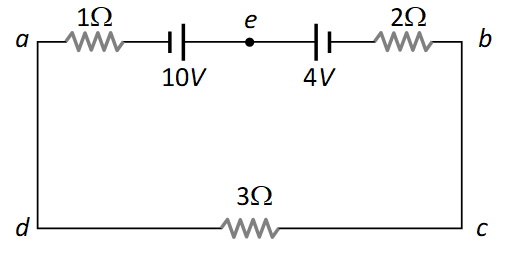

Question: The magnitude and direction of the current in the circuit shown will be

Question Image

1) $\frac{7}{3}$A from a to b through e

2) $\frac{7}{3}$A from b to a through e

3) 1A from b to a through e

4) 1A from a to b through e

Solution:

Explanation: No Explanation

Kirchhoff's Law Cells Internal Resistance
