Current Electricity

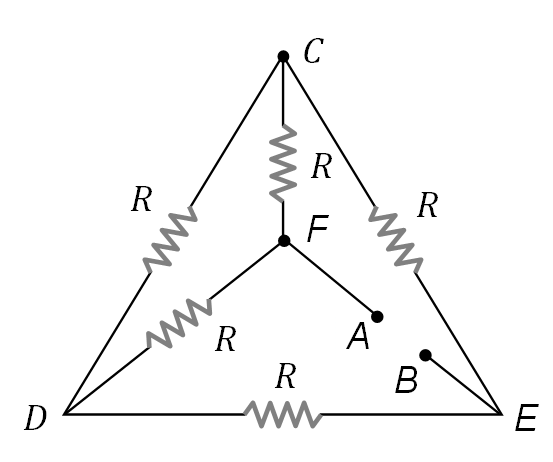

Question: Five equal resistances each of resistance R are connected as shown in the figure. A battery of V volts is connected between A and B. The current flowing in AFCEB will be

Question Image

1) $\frac{{3V}}{R}$

2) $\frac{V}{R}$

3) $\frac{V}{{2R}}$

4) $\frac{{2V}}{R}$

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
