Current Electricity

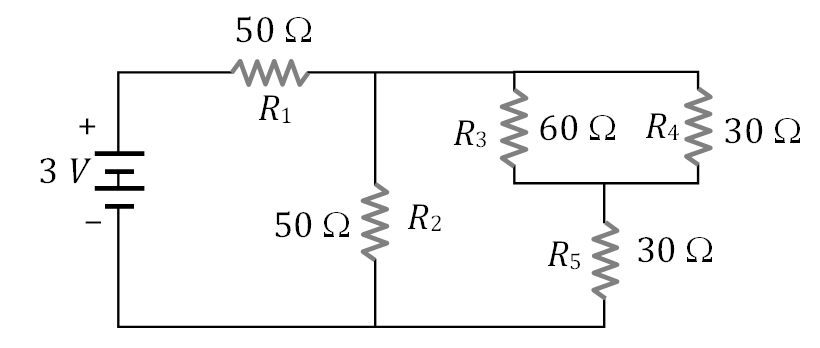

Question: In circuit shown below, the resistances are given in ohms and the battery is assumed ideal with emf equal to 3 volt. The voltage across the resistance R4 is

Question Image

1) 0.4 V

2) 0.6 V

3) 1.2 V

4) 1.5 V

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
