Current Electricity

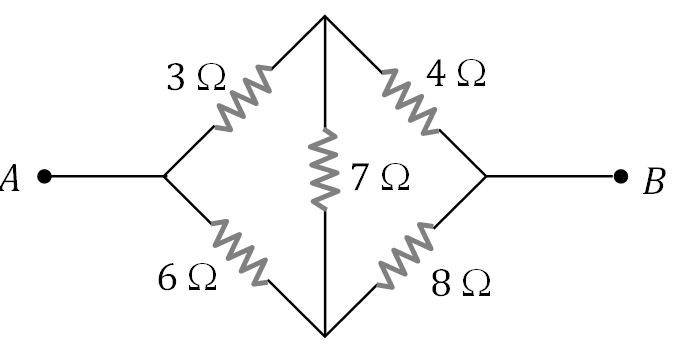

Question: In the given figure, equivalent resistance between A and B will be

Question Image

1) $\frac{{14}}{3}\,\,\Omega $

2) $\frac{3}{{14}}\,\,\Omega $

3) $\frac{9}{{14}}\,\,\Omega $

4) $\frac{{14}}{9}\,\,\Omega $

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
