Current Electricity

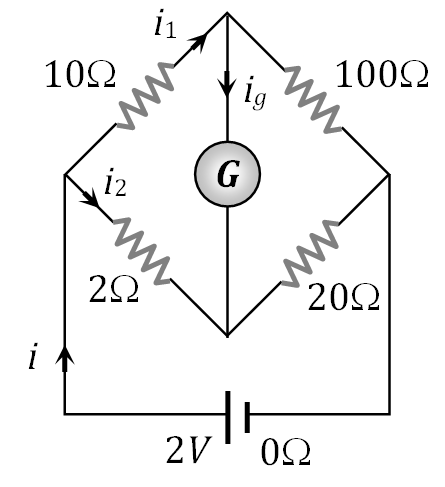

Question: In the circuit shown below the resistance of the galvanometer is 20 ?. In which case of the following alternatives are the currents arranged strictly in the decreasing order

Question Image

1) $i, i_1, i_2, i_g$

2) $i, i_2, i_1, i_g$

3) $i, i_2, i_g, i_1$

4) $i, i_1, i_g, i_2$

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
