Current Electricity

Question: The equivalent resistance between x and y in the circuit shown is

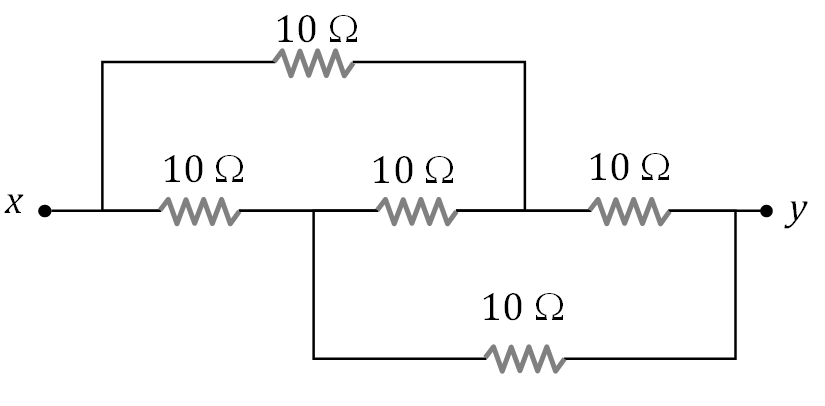

Question Image

1) $10 \Omega$

2) $40 \Omega$

3) $20 \Omega$

4) $\frac{5}{2}\,\,\Omega $

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
