Current Electricity

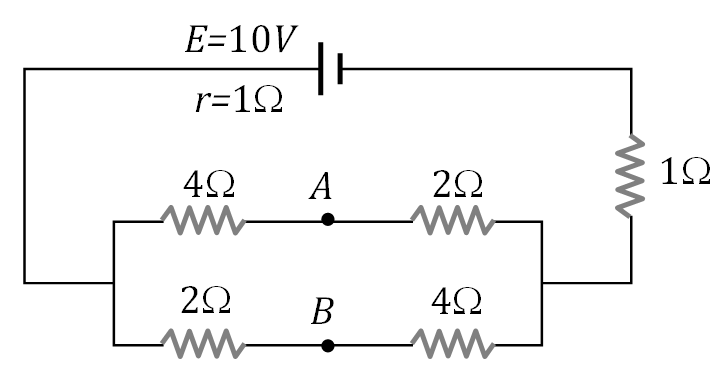

Question: In the circuit shown below, the cell has an e.m.f. of 10 V and internal resistance of 1 ohm. The other resistances are shown in the figure. The potential difference ${V_A} - {V_B}$ is

Question Image

1) 6 V

2) 4 V

3) 2 V

4) $- 2\,V$

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
