Current Electricity

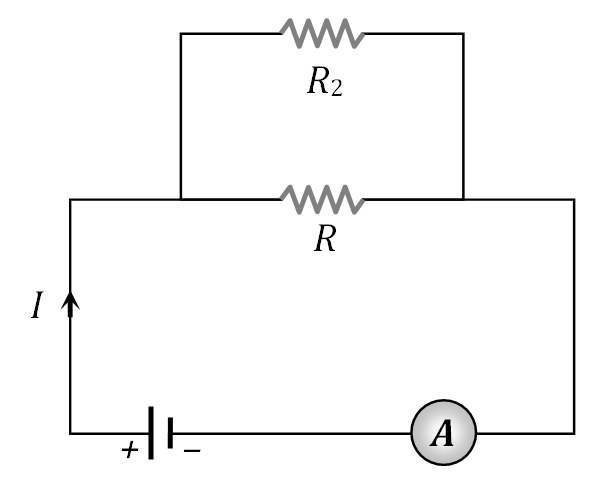

Question: If a resistance is connected in parallel with the resistance R in the circuit shown, then possible value of current through R and the possible value of ${R_2}$ will be

Question Image

1) $\frac{I}{3},\,R$

2) $I,\,2R$

3) $\frac{I}{3},\,2R$

4) $\frac{I}{2},\,R$

Solution:

Explanation: No Explanation

Grouping of Resistors Combination of Resistors
