Two wires of the same material and equal length are joined in parallel combination. If one of them has half the thickness of the other and the thinner wire has a resistance of 8 ohms, the resistance of the combination is equal to

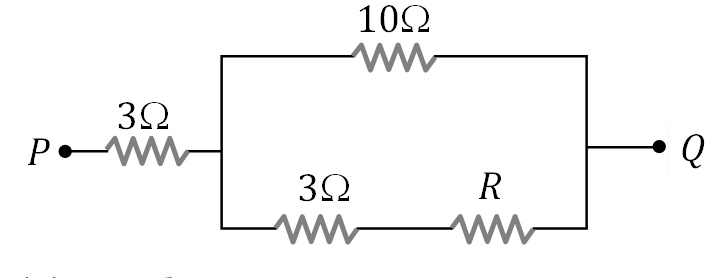

In the circuit shown here, what is the value of the unknown resistor R so that the total resistance of the circuit between points P and Q is also equal to R Question Image
A uniform wire of resistance $9 \Omega$ is cut into 3 equal parts. They are connected in the form of equilateral triangle ABC. A cell of e.m.f. 2 V and negligible internal resistance is connected across B and C. Potential difference across AB is
The resistors of resistances $2 \Omega$, $4 \Omega$ and $8 \Omega$ are connected in parallel, then the equivalent resistance of the combination will be
Effective resistance between A and B is Question Image
The effective resistance of two resistors in parallel is $\frac{{12}}{7}\,\,\Omega $ . If one of the resistors is disconnected the resistance becomes $4 \Omega$. The resistance of the other resistor is
Two resistance wires on joining in parallel the resultant resistance is $\frac{6}{5}\,\,ohms$. One of the wire breaks, the effective resistance is 2 ohms. The resistance of the broken wire is
In the circuit, the potential difference across PQ will be nearest to Question Image
Three resistors are connected to form the sides of a triangle ABC, the resistance of the sides AB, BC and CA are 40 ohms, 60 ohms and 100 ohms respectively. The effective resistance between the points A and B in ohms will be
Find the equivalent resistance across AB Question Image
